Details
Product description

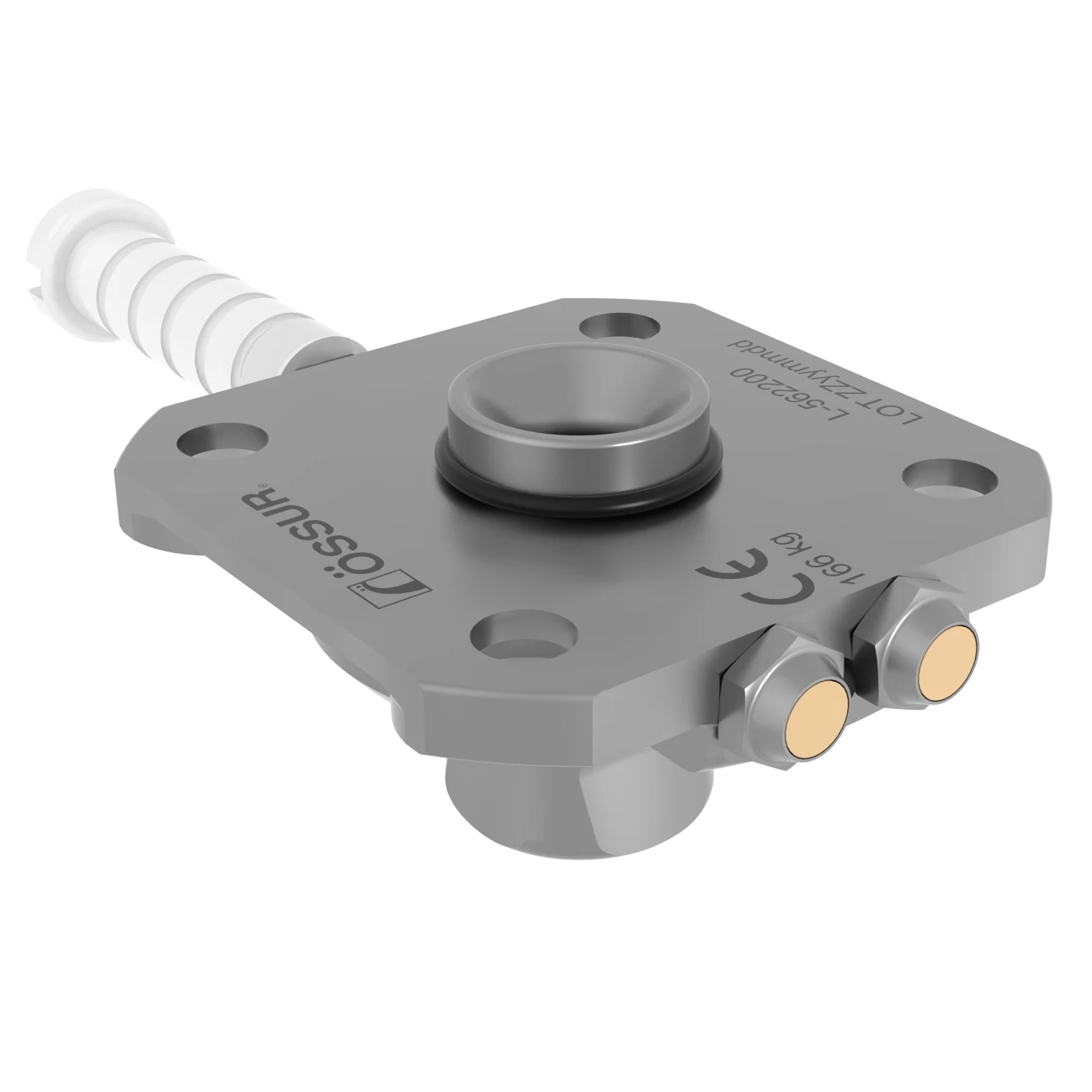

The Icelock 562 Hybrid is a lock for lower limb amputees of all activity levels, providing superior function by combining the benefits of locking suspension with the benefits of vacuum suspension.
Users can benefit from reduced pistoning and improved rotational control from Seal-In, yet keeping the mechanical connection they are used to with its perceptible feedback.

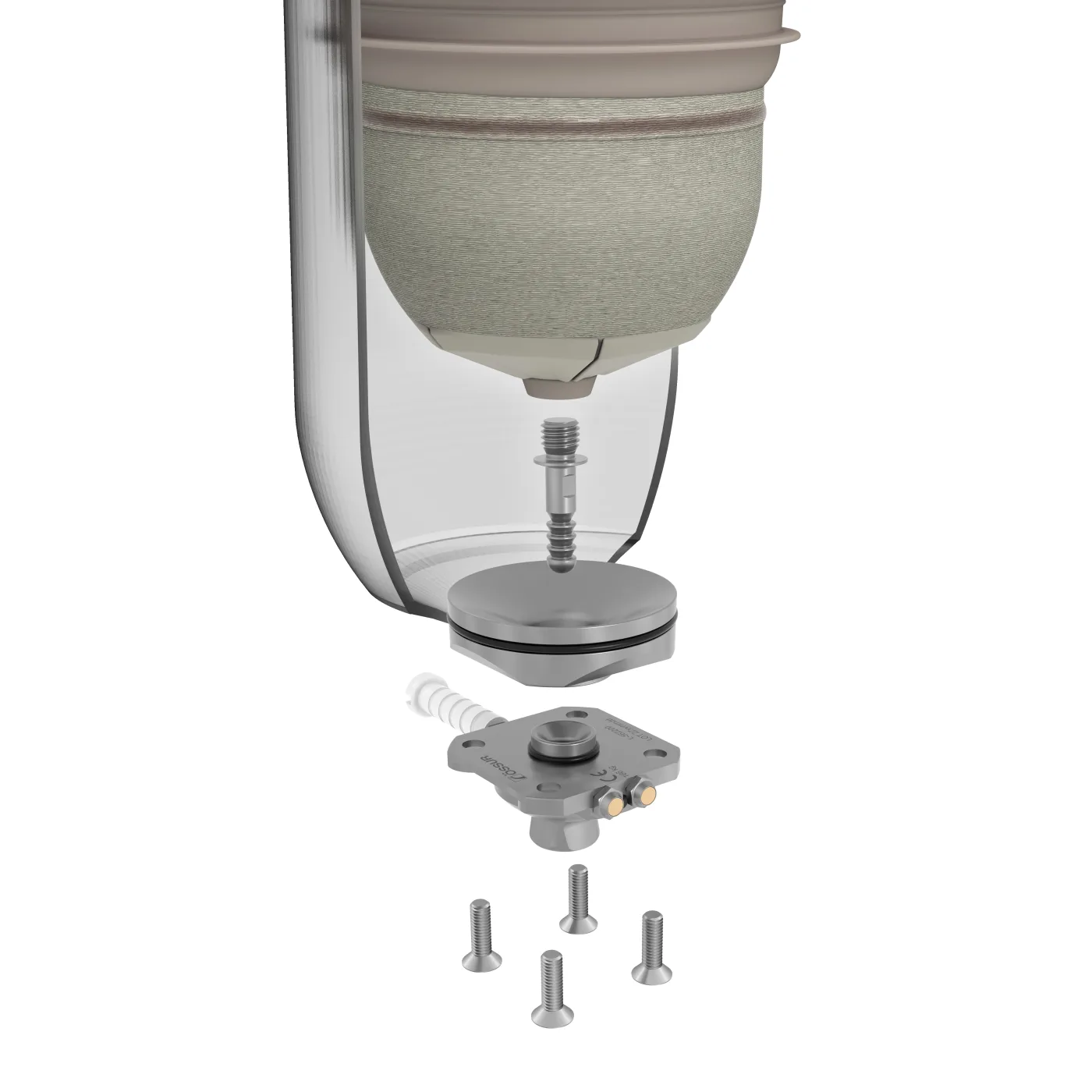

The lock should be used with the Seal-In X Locking liner, movable seal-rings and an airtight socket.
Combine Seal-In Technology with Unity vacuum system for stabilization of volume fluctuations and comfortable socket fit throughout the day.
Key features
Option to change easily between locking suspension only, Seal-In only or combining these suspension mechanisms at the same time.
Low build height (with male pyramid integrated).
Unity compatible.
Direct Socket compatible.
General information
Level of limb difference:
Transtibial
Impact Level:
Low, Moderate and High
Characteristics
Ratchet pin and Weatherproof
Suspension method
Seal-In X and Locking
Max patient weight
166 kg (365 lbs)
Characteristics
Ratchet pin
Used with Iceross® locking liners for moderate and highly active amputees with bony residual limbs who prefer the security of stepping into the prosthesis to don the socket. The ratchet pin makes an audible clicking sound when it engages, which many amputees find reassuring.
Weatherproof
A weatherproof device allows use in a wet and/or humid environment but does not allow submersion. Fresh water splashing against the enclosure from any direction shall have no harmful effect. Dry thoroughly after contact with fresh water. Fresh water: Includes tap water. Excludes salt and chlorinated water. For a weatherproof system, only weatherproof components must be selected.
Suspension method
Seal-In X
The movable seal allows the user to position the seal on the perfect position and fully benefit from a secure and comfortable suspension. Donning a Seal-In liner has never been so easy. • Individual positioning of the seal • Ease of donning and doffing • Exceptional rotation control
Locking
The locking feature offers users firm, secure and comfortable suspension. Can be used with either locking or lanyard systems.
