Standard Adapters

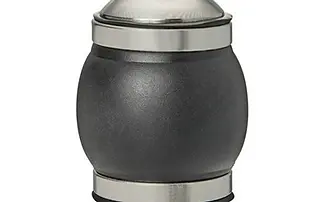

Torsion Shock Adapter
The Torsion Shock Adapter has shock absorption and rotational functions that reduce rotary and shear forces on the residual limb.
Knee Rotation Adapter
Enables users to turn the knee 360°.
Product Material: Stainless Steel
Weight limit: 125 kg (275 lbs)
Build Height: 27mm (1 1/16")
4-Hole Male Pyramid Adapter AL
Product material: Aluminum with Stainless Steel Insert
Weight limit: 100 kg / 220 lbs
Build height: 9mm / 3/8"
4-Hole Female Pyramid Adapter AL
Product material: Aluminum
Weight limit: 100 kg / 220 lbs
Build height: 16mm / 5/8"
4-Hole Female Pyramid Adapter 20/20 Offset AL
Product material: Aluminum
Weight limit: 125 kg (275 lbs)
Build height: 22mm (7/8")
4-Hole Male Pyramid Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 8.5mm (5/16")
4-Hole Male Pyramid Adapter Rotation TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 10.5mm (7/16")
4-Hole Male Pyramid Adapter 8mm Offset TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 8.5mm (5/16")
4-Hole Female Pyramid Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height:15.5mm (5/8")
4-Hole Female Pyramid Adapter Rotation TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 17.5mm (11/16")
4-Hole Male Pyramid Adapter Rotation SS
Product material: Stainless Steel
Weight limit: 136 kg (300 lbs)
Build height: 10.5mm (7/16")
4-Hole Female Pyramid Adapter Rotation SS
Product material: Stainless Steel
Weight limit: 136 kg (300 lbs)
Build height: 19mm (6/8")
Female Double Adapter AL
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Build height range: 32mm - 75mm (1 1/4" - 3")
Female Double Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height range: 32mm - 75mm (1 1/4" - 2 15/16")
Male Double Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 12mm (1/2")
Tube
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Length: 250mm-400mm (9 3/4" - 15 3/4)
Female Pylon AL
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Length: 250mm-400mm (9 3/4" - 15 3/4)
Female Pylon Kit 100kg
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Length: 250mm-400mm (9 3/4" - 15 3/4)
Height Adjustable Pylon
Product Material: Aluminum
Weight limit: 100 kg (220 lbs)
Length range (Standard): 77mm - 95mm (3" - 3 3/4")
Length range (Long): 94mm - 128mm (3 3/4" - 5")
Female Pylon TI WP
Product material: Titanium pyramid, Aluminum tube
Weight limit: 166 kg (365 lbs)
Length range: 250mm - 400mm (9 3/4" - 15 3/4")
Female Pylon Kit 166 kg
Product material: Titanium pyramid, Aluminum tube
Weight limit: 166 kg (365 lbs)
Length range: 250mm - 400mm (9 3/4" - 15 3/4")
Female Double Adapter With Shift TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Length range: 60mm (2 3/8")
Flexion Plate
Product material: Aluminum
Weight limit: 136 kg (300 lbs)
Build height: 12mm (1/2")
Male Single Adapter AL
Product material: Aluminum with Stainless Steel Pyramid Insert
Weight limit: 100 kg (220 lbs)
Build height range: 35.5mm - 63mm (1 3/8" - 2 1/2")
Female Single Adapter AL
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Build height range: 100mm - 200mm (4" - 7 7/8")
Male Single Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height range: 35.5mm - 63mm (3/16" - 1 1/2")
Female Single Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 100mm (3 15/16")
4-Hole Socket Adapter AL
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Build height: 18.5mm (3/4")
Male Insert For Prong
Product material: Stainless Steel Insert
Weight limit: 100 kg (220 lbs)
Build height: 7.5mm (5/16")
Female Insert For Prong SS
Product material: Stainless Steel
Weight limit: 100 kg (220 lbs)
Build height: 14mm (9/16")
Male Socket Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 8.5mm (5/16")
4-Hole Socket Adapter TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 18.5mm (3/4")
4-Prong Socket Adapter SS
Product material: Stainless Steel
Weight limit: 166 kg (365 lbs)
Build height: 8mm (5/16")
3-Prong Socket Adapter SS
Product material: Stainless Steel
Weight limit: 166 kg (365 lbs)
Build height: 8mm (5/16")
Male Insert For Prong TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 7.5mm (5/16")
Female Insert For Prong TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 14mm (9/16")
Female Insert For Prong LP TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 9mm (3/8")
Male Tube Clamp AL
Product material: Aluminum with Stainless Steel Insert
Weight limit: 100 kg (220 lbs)
Build height: 7mm (1/4")
4-Hole Tube Clamp AL
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Build height: 4mm (3/16")
Female Tube Clamp AL
Product material: Aluminum
Weight limit: 100 kg (220 lbs)
Build height: 16mm (5/8")
Male Tube Clamp TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 5.5mm (3/16")
Female Tube Clamp TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 14mm (9/16")
4-Hole Tube Clamp TI
Product material: Titanium
Weight limit: 166 kg (365 lbs)
Build height: 2mm (1/16")
